Sirui PB-10 Multi-Axial Panoramic Head

Create spherical or panoramic images with the 8.3" Sirui PB-10 Multi-Axial Panoramic Head that consist of a 360° panning base, vertical and horizontal rails, and a swing arm with an Arca clamp. The 14.8 oz head's load capacity is 6.6 lb, which is suitable for mirrorless and compact DSLR systems, and degree scales are located on each rail so setups can be repeated. The vertical rail slides across the horizontal rail to adjust, and the swing arm rotates 360° in 15° increments to help create panoramic or spherical shots.

The panning base mounts onto tripods with a 3/8"-16 threaded mount, but can also mount to Arca-type compatible ball heads because of the dovetails located on the bottom of the rotating base. An independent pan locking knob and a tension control knob are located on the base. By turning the tension knob slightly, tension is increased, and at every 15° there is an indicating click stop. The bubble level on the horizontal rail ensures that the whole setup is aligned with the horizon.

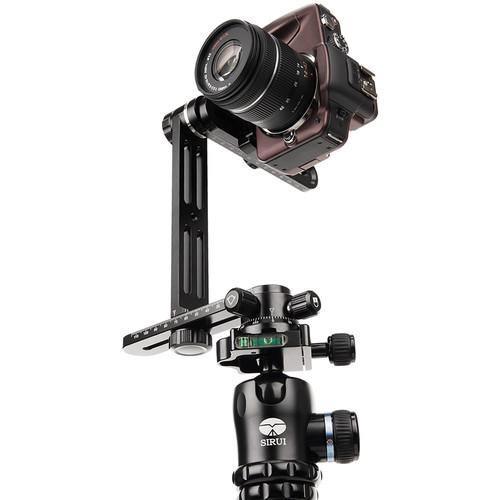

PB-10 has a load capacity of 6.6 lb, which is suitable for mirrorless and DSLR systems

The swing arm, which has an Arca-type clamp, rotates 360° in 15° increments to help create panoramic or spherical shots

360° panning base mounts onto tripods with a 3/8"-16 threaded mount, but can also mount to Arca-type compatible clamps because of its dovetails on the bottom

The base has an independent pan locking knob and tension control, which is increased along with a click stop every 15°

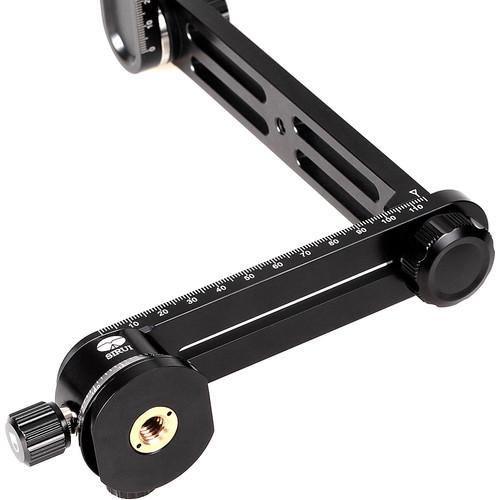

Degree scales are located on each rail, so future setups can be repeated

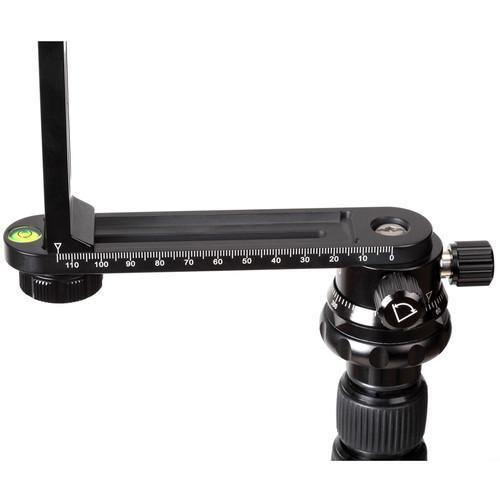

Bubble level on the horizontal rail ensures that the whole setup is aligned with the horizon
